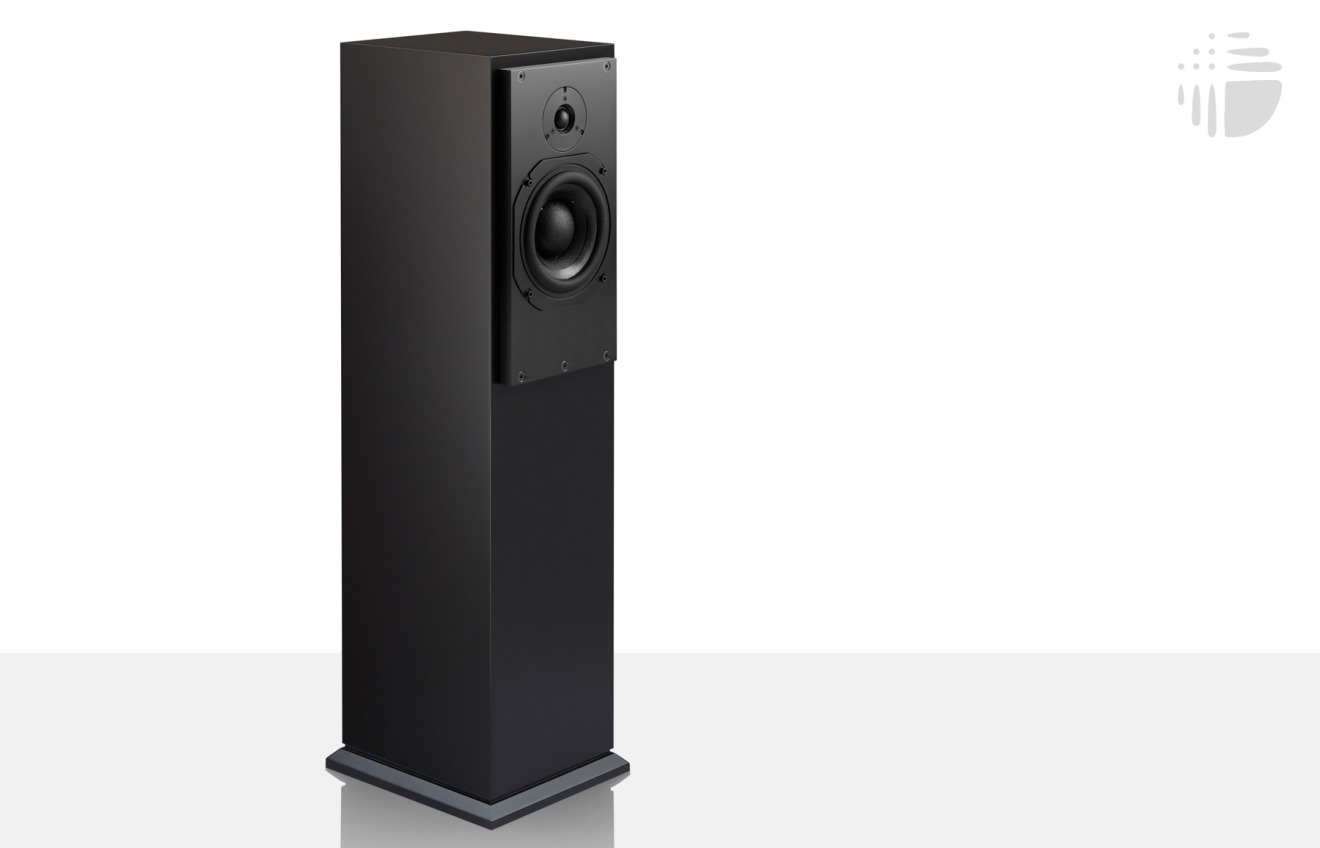

ATC Consumer Hifi SCM20A SL Tower (pair)

Productbeschrijving

Standard Finish: Cherry / Black Ash / Oak / Walnut / Maple / Satin Black & White

Active versus Passive

Active amplification has many advantages:
- Real active amplification means using a dedicated amplifier for each frequency band. Not to be confused by having one broad band amplifier built into the loudspeaker cabinet whilst still using passive crossovers.
- Active crossover filters (at the input of the amplifier) with phase correction ensure accurate timbre, excellent imaging and source location
- A flat magnitude response that is not changed with power input level results in excellent linear behaviour
- A 20dB improvement in intermodulation distortion (IMD). Reducing IMD is one of the major design goals when designing a loudspeaker system.
- Better controlled low frequency (due to optimal damping by the amplifier)
- A greater dynamic range for the same input power (no losses caused by a passive filter)

Features
- Full SL Spec Bass driver with 75mm integral soft dome.
- 9kg optimised motor assembly.
- In-house, hand wound precision flat wire coil.
- Wide dispersion and perfect imaging.
- 250watt Class A (to 2/3 max power) Bi-amplifier.
- Active filters and overload protection.
- 6 year warranty.
- Also available in passive version
- Any veneer to order.

Specifications
Drivers : HF 25mm Neodynium, Mid/LF 150mm
Frequency Response (±2dB) : 80Hz-17kHz
Frequency Response (±6dB) : 60Hz-22kHz
Matched Response : ±0.5dB
Dispersion : ±80° Coherent Horizontal, ±10° Coherent Vertical
Max SPL : 108dB
Crossover Frequency : 2.8kHz
Connectors : Male XLR
Filters : All active
Amplifier Output : 200w LF, 50w HF
Cabinet Dimensions (HxWxD) : 990x239x365mm
Weight : 40kg

Burr Walnut: p.o.a.
